Construction manual

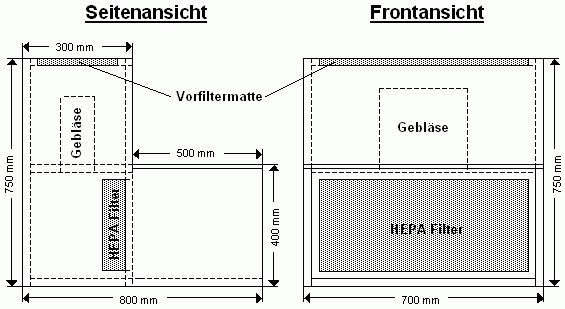

In the picture below you can see the plan of our laminar flow hood which we built of 19 mm press boards. It is recommended to use a board made of transparent plexiglas for the top of the sterile flasking area to let as much light in as possible.
Cost listing
The prices were evaluated in 2009.
| Blower (G2E140-AI28-01): | 114.30€ |
| Filter pad (E360): | 15.08€ |
| HEPA filter (HS Mikro SF 305 x 610 x 78 mm): | 131.08€ |
| press boards: | 23.91€ |
| small parts (screws ...): | 20.00€ |
| Total: | 304.37€ |
Author: Thomas Ederer
